MFT SOA Integration

This post describes about how to Integrate Oracle Managed File Transfer and SOA

A SOA target in Oracle Managed File Transfer corresponds to an MFT service binding component in SOA or simply we can depict above scenario as

Even though above diagram depicts the flow is from MFT to SOA but while developing we will first create SOA composite and will give the SOA composite endpoint URI in the MFT target. So, high level steps are

• In Jdeveloper Create SOA project with BPEL in components section and MFT Adapter in service Section. Deploy the SOA project and get the endpoint URI.
• In MFT Create Source as file and create target as SOA by providing the Endpoint URI

Create BPEL with define services later

Create MFT Adapter at service section

Click finish and join MFT adapter and BPEL

In the Bpel create Receive activity wire it to the MFTService  and set input variable Check the check box for  Create Instance.

Create reply activity

Add assign activity

Deploy the project MFT_SOA_Integration

Copy the endpoint URI we will use this when creating MFT target

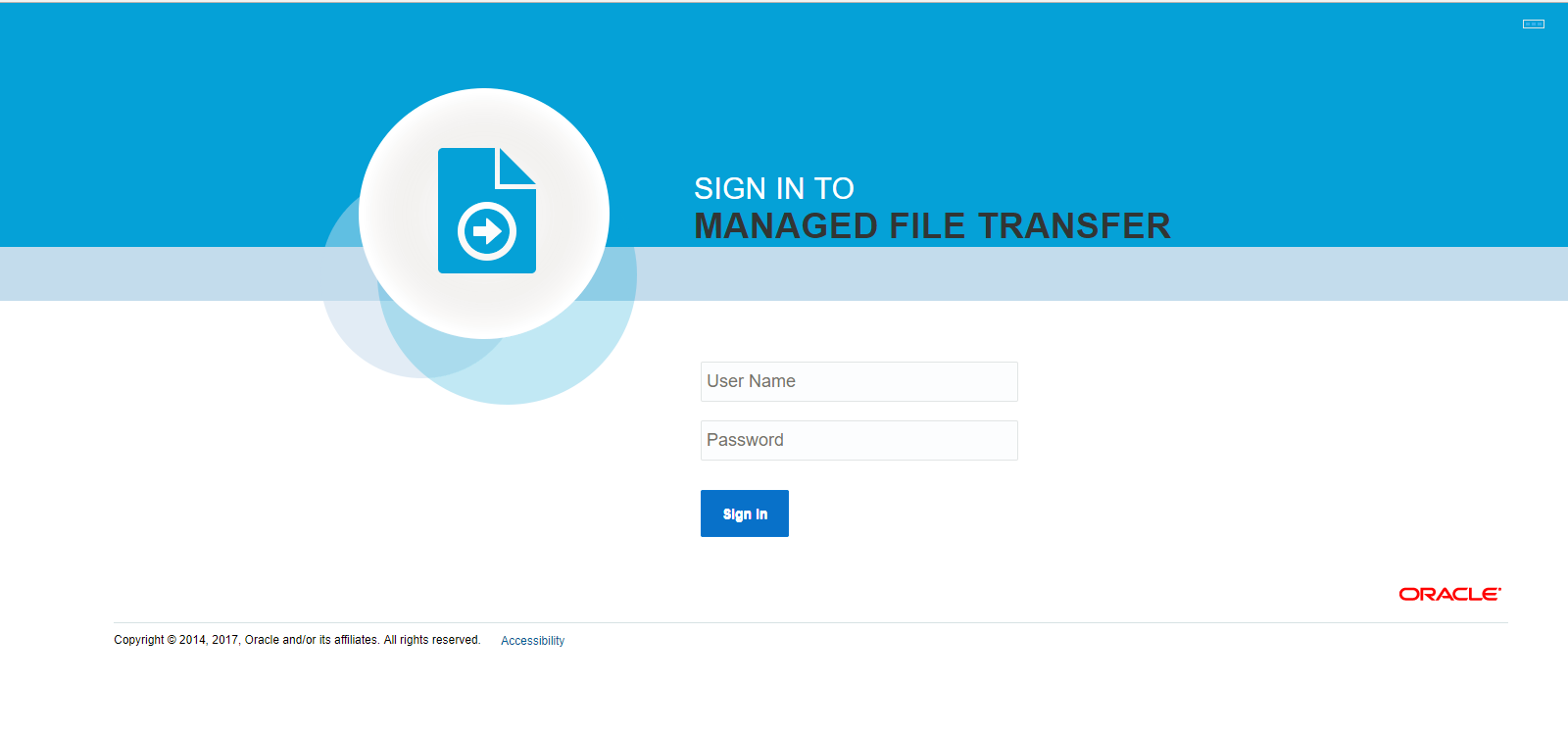

Login to MFT Console (http://host:port/mftconsole)

Go to Design tab to create the MFT Artifacts(Source,target,Transfer)

create source

We can also give other properties but as of now we will leave other values to default

Now create target by providing the SOA Endpoint URI

In the advance options keep message type as text

Create Transfer

Add the already created source and target in the transfer

After adding source and target to transfer

In the Source add content filter as Sample*.txt which means that we are going to read files of above pattern

In the target side set delivery preference, as inline which means until the file is of 1048576 bytes data in the file will be sent as payload. If file size is more than that file will be moved as reference

Now save and Deploy

Keep the file in the location (D:\DEMO\MFT) with some text.

Now go to Monitoring tab you can see our deployed Transfer

Go to Transfer Instances and instances

If we click the “id” of instance we can see the flow

Now go to BPEL we can see the instance is created for the soa project

Open the flow instance

In the above scenario we are getting file content in the payload .If the file size is more than 104850 bytes we can get the file as reference.

Now create file size more than 104850 and resubmit the transfer in the monitoring tab new instance is created with file in reference

MFT FAN-OUT USE CASE SAMPLE

Oracle Managed File Transfer can transfer files on its own using embedded FTP and sFTP servers and the file systems to which it has access. In this use case, we will transfer same file to multiple targets.

To Design the above use case, we need to create three Artifacts in the Designer page of the Oracle Managed File Transfer Console. Three artifacts are source, Target, Transfer

Source: It defines the origin of file location of the file from which MFT will pick

Targets: It is the destination location where the MFT put the file.

Transfer: This artifacts links one source to one or more targets.

Login to mft console open design tab and create source and select type as file because we will read file from local folder (where the MFT is running)

Create two targets with names FAN_OUT_Target1 and FAN_OUT_Target2

Create a transfer with name MFT_FAN_OUT

In the transfer, we will add the source and targets we already created



        Add Source

          Add target

Transfer has been created with one source(FAN_OUT_Source) and Two targets (FAN_OUT_Target1, FAN_OUT_TARGET2)

In the source, we will restrict the files it will read by providing the value in the content filter as below. Here we are restricting to read file with name Sample*.txt

Save the changes and Deploy the MFT_FAN_OUT transfer.We can see the deployed transfer in the Monitoring tab deployments section.

Now place the file in the source directory same file has been moved to two targets

After file has been moved to target directory file is not deleted from source directory. We have the options in the Source to delete and archive the file after the transfer.

Files Impacted with MDS IP Address Change

We had a situation where we need to move MDS to new machine with no change in password or service name. File that needs to be changed after Meta data database is moved to New machine are

$Oracle_Home/user_projects/domains/base_domain/config/jdbc

SOALocalTxDataSource-jdbc.xml

SOADataSource-jdbc.xml

opss-datasource-jdbc.xml

opss-auditview-jdbc.xml

opss-audit-jdbc.xml

mds-soa-jdbc.xml

mds-owsm-jdbc.xml

mds-ess-jdbc.xml

ess-oracle-xa-jdbc.xml

ess-oracle-jdbc.xml

ess-oracle-int-jdbc.xml

EDNLocalTxDataSource-jdbc.xml

EDNDataSource-jdbc.xml

In all the above files change the localhost to new host name (IP Address). Based on your domain configuration you may have more files.

Along with these files we also need to change in

 $Oracle_Home/user_projects/domains/base_domain/config/fmwconfig

jps-config-jse.xml (In this file we need to change at two places)

jps-config.xml
